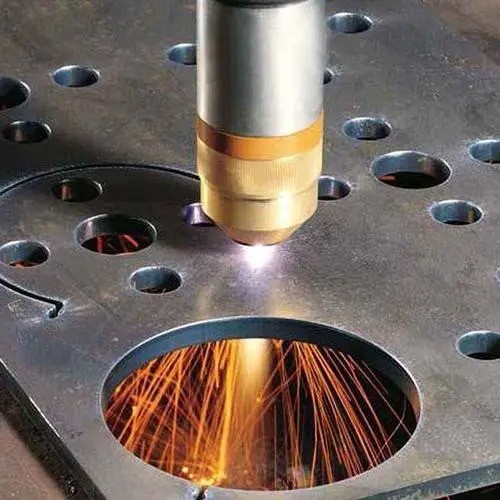

Herolaser Laser Cutting Machine Cut Equipment for Metal Sheet
Fiber laser heads are able to detect jutting obstacles to effectively reduce the damage rate and save the maintenance cost of a laser cutter.
Bigger Adjustment Range
The smoke produced by cutting can be filtrated inside, it’s non-polluting and environmentally, friendly.
Long Service Life
Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head
to improve the life of the cutting head.
Stable Cutting Performance
Fiber laser source can produce excellent beam quality,finer cutting lines,higher working efficiency and better machining quality.Fully closed
constant temperature working environment makes laser source more effective to ensure the stable operation.
Machine Parameters:
| S/N | Name | Model | Remarks |
| 1 | High power fiber laser cutting machine | ML-CB-6020T | Herolaser |
| 2 | Numerical control system | CypCut | Shanghai Bochu |
| 3 | Servo drive | Fuji | Japan |
| 4 | Reducer | Modoli | France |
| 5 | X, Y-axis rack | YYC | Taiwan China |
| 6 | Z-axis lead screw | HIWIN | Taiwan China |
| 7 | Linear guide rail | HIWIN | Taiwan China |
| 8 | Laser | MAX/RECI/IPG | China/German |
| 9 | Cutting head | Osprey | China |
| 10 | Cooling-water machine | Teyu | China |
| 11 | Pneumatic components | SMC (or equivalent) | Japan |
| 12 | Electrical components | Schneider (or equivalent) | France
|
Cutting Process Parameters
There are differences due to different types of cutting head and laser. Taking 1500W as an example, the following parameters are for reference only:
| S/N | Material | Thickness(mm) | Speed(m/min) | Auxiliary gas |
| 1 | Stainless Steel | 1 | 35-45 | HP N2 |
| 2 | Stainless Steel | 2 | 12-18 | HP N2 |
| 3 | Stainless Steel | 3 | 4.5-5.5 | HP N2 |
| 4 | Stainless Steel | 4 | 2.5-3.5 | HP N2 |
| 5 | Stainless Steel | 5 | 1.5-2.0 | HP N2 |
| 6 | Stainless Steel | 6 | 0.8-0.9 | HP N2 |
| 7 | Stainless Steel | 8 | 0.2-0.3 | HP N2 |
| 8 | Carbon steel | 1 | 16-20 | O2 |
| 9 | Carbon steel | 2 | 7.8-8.3 | O2 |
| 10 | Carbon steel | 3 | 4.6-5.2 | O2 |
| 11 | Carbon steel | 4 | 2.5-3.0 | O2 |
| 12 | Carbon steel | 5 | 2.0-2.5 | O2 |
| 13 | Carbon steel | 6 | 1.7-2.0 | O2 |
| 14 | Carbon steel | 8 | 1.2-1.5 | O2 |
| 15 | Carbon steel | 10 | 1.0-1.2 | O2 |
| 16 | Carbon steel | 12 | 0.8-0.9 | O2 |
| 17 | Carbon steel | 16 | 0.5-0.7 | O2 |
| 18 | Aluminum | 1 | 23-35 | HP N2 |
| 19 | Aluminum | 2 | 7.5-9 | HP N2 |
| 20 | Aluminum | 3 | 4-5 | HP N2 |
| 21 | Aluminum | 4 | 2-2.5 | HP N2 |
| 22 | Aluminum | 5 | 0.9-1.3 | HP N2 |
| 23 | Aluminum | 6 | 0.5-0.7 | HP N2 |
| 24 | Aluminum | 8 | 0.2-0.25 | HP N2 |
| S/N | Material | Thickness(mm) | Speed(m/min) | Auxiliary gas |
| 1 | Stainless Steel | 1 | 35-45 | HP N2 |
| 2 | Stainless Steel | 2 | 12-18 | HP N2 |
| 3 | Stainless Steel | 3 | 4.5-5.5 | HP N2 |
| 4 | Stainless Steel | 4 | 2.5-3.5 | HP N2 |
| 5 | Stainless Steel | 5 | 1.5-2.0 | HP N2 |
| 6 | Stainless Steel | 6 | 0.8-0.9 | HP N2 |
| 7 | Stainless Steel | 8 | 0.2-0.3 | HP N2 |
| 8 | Carbon steel | 1 | 16-20 | O2 |
| 9 | Carbon steel | 2 | 7.8-8.3 | O2 |
| 10 | Carbon steel | 3 | 4.6-5.2 | O2 |
| 11 | Carbon steel | 4 | 2.5-3.0 | O2 |
| 12 | Carbon steel | 5 | 2.0-2.5 | O2 |
| 13 | Carbon steel | 6 | 1.7-2.0 | O2 |
| 14 | Carbon steel | 8 | 1.2-1.5 | O2 |
| 15 | Carbon steel | 10 | 1.0-1.2 | O2 |
| 16 | Carbon steel | 12 | 0.8-0.9 | O2 |
| 17 | Carbon steel | 16 | 0.5-0.7 | O2 |
| 18 | Aluminum | 1 | 23-35 | HP N2 |
| 19 | Aluminum | 2 | 7.5-9 | HP N2 |
| 20 | Aluminum | 3 | 4-5 | HP N2 |
| 21 | Aluminum | 4 | 2-2.5 | HP N2 |
| 22 | Aluminum | 5 | 0.9-1.3 | HP N2 |
| 23 | Aluminum | 6 | 0.5-0.7 | HP N2 |
| 24 | Aluminum | 8 | 0.2-0.25 | HP N2 |
| S/N | Material | Thickness(mm) | Speed(m/min) | Auxiliary gas |
| 1 | Stainless Steel | 1 | 35-45 | HP N2 |
| 2 | Stainless Steel | 2 | 12-18 | HP N2 |
| 3 | Stainless Steel | 3 | 4.5-5.5 | HP N2 |
| 4 | Stainless Steel | 4 | 2.5-3.5 | HP N2 |
| 5 | Stainless Steel | 5 | 1.5-2.0 | HP N2 |
| 6 | Stainless Steel | 6 | 0.8-0.9 | HP N2 |
| 7 | Stainless Steel | 8 | 0.2-0.3 | HP N2 |
| 8 | Carbon steel | 1 | 16-20 | O2 |
| 9 | Carbon steel | 2 | 7.8-8.3 | O2 |
| 10 | Carbon steel | 3 | 4.6-5.2 | O2 |
| 11 | Carbon steel | 4 | 2.5-3.0 | O2 |
| 12 | Carbon steel | 5 | 2.0-2.5 | O2 |
| 13 | Carbon steel | 6 | 1.7-2.0 | O2 |
| 14 | Carbon steel | 8 | 1.2-1.5 | O2 |
| 15 | Carbon steel | 10 | 1.0-1.2 | O2 |
| 16 | Carbon steel | 12 | 0.8-0.9 | O2 |
| 17 | Carbon steel | 16 | 0.5-0.7 | O2 |
| 18 | Aluminum | 1 | 23-35 | HP N2 |
| 19 | Aluminum | 2 | 7.5-9 | HP N2 |
| 20 | Aluminum | 3 | 4-5 | HP N2 |
| 21 | Aluminum | 4 | 2-2.5 | HP N2 |
| 22 | Aluminum | 5 | 0.9-1.3 | HP N2 |
| 23 | Aluminum | 6 | 0.5-0.7 | HP N2 |
| 24 | Aluminum | 8 | 0.2-0.25 | HP N2 |
After-Sales Services
1. 2 year guarantee for laser source(people damaged are charged)
2. Full technical support / by e-mail, call and video
3. Spare parts supply.
4. Free online training installation and operation
5. 12 hours quick feedback & after-sales services
6. ODM/OEM service
FAQ
1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.
2. What are the payment methods of Herolaser Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay
3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.
4. Can I visit the factory?
Available to have a visit to our factory at any time.
5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.
6. Can I go to the factory to test the machine before shipment?
Of course you can.
7.How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.
8.How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
